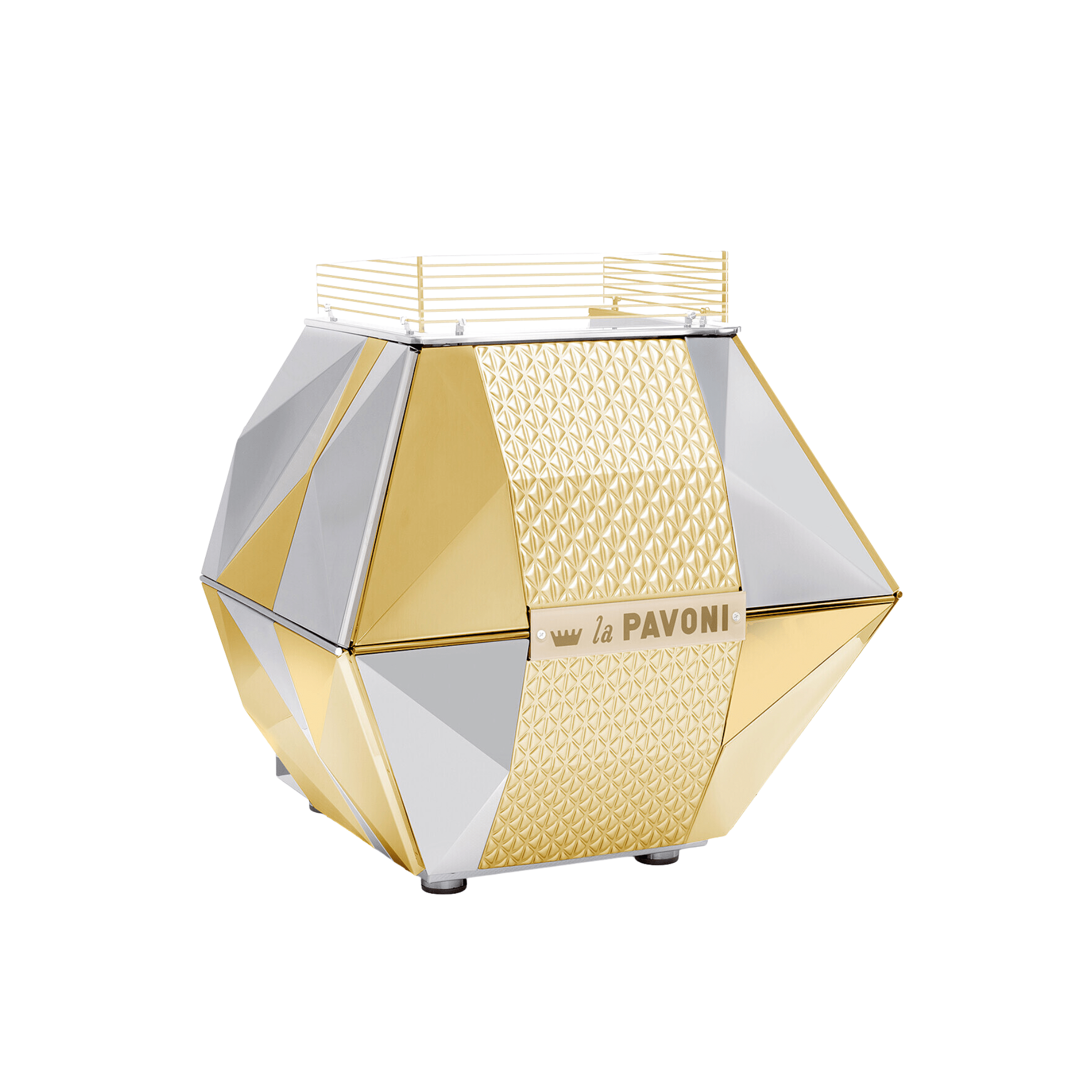

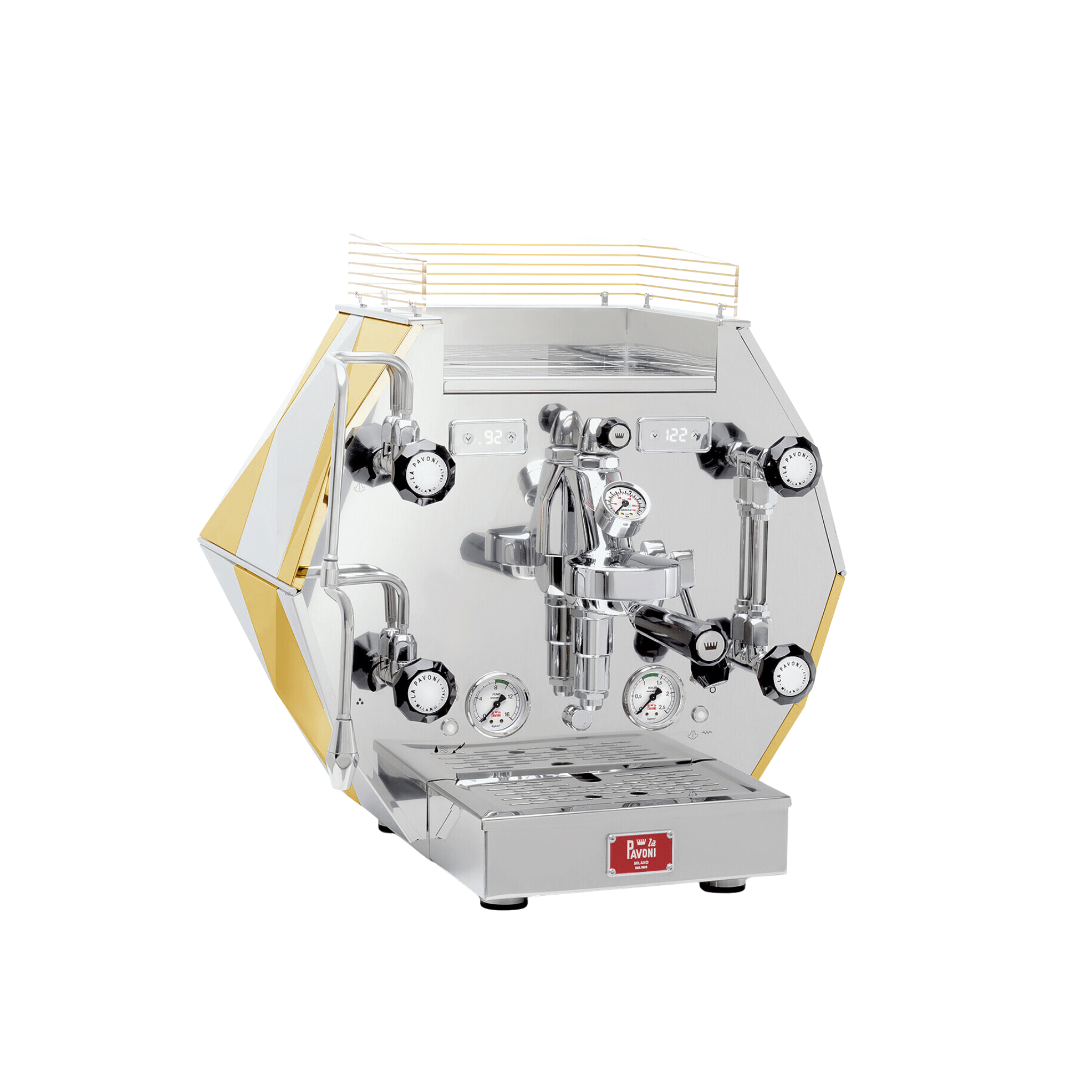

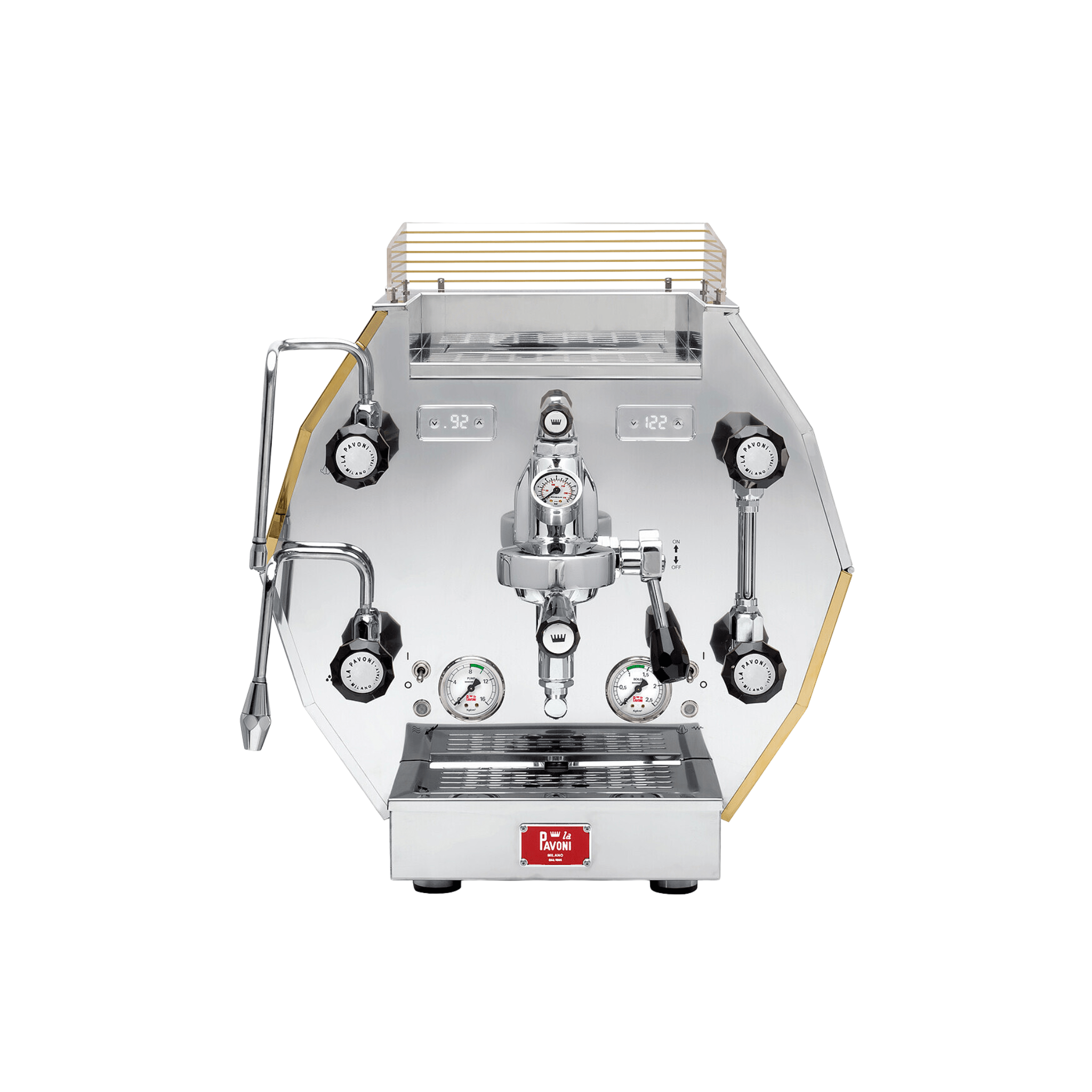

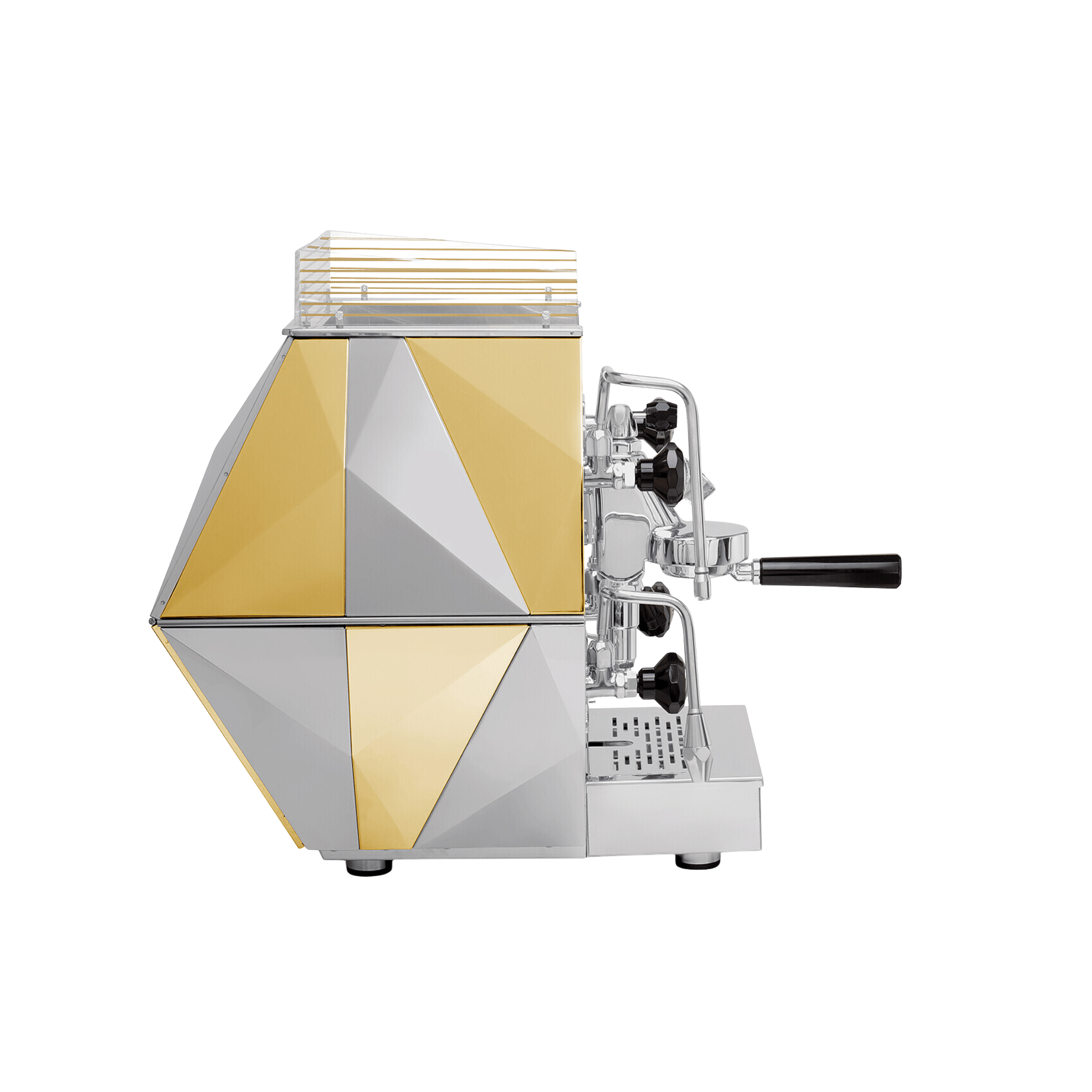

La Pavoni Diamantina - Home Espresso Machine
Couldn't load pickup availability
The Diamantina sits at the top end of La Pavoni’s semi-professional range. It feels substantial from the moment you see it, with its polished finishes, brass and steel internals and the quiet confidence of a dual-boiler machine built for serious home espresso.
It blends heritage design with modern control. The E61 group offers steady, reliable extraction, while rotary pumping and full PID management give you the freedom to dial in exactly how you want your coffee to taste. The machine feels reassuringly solid in use, and the cool-touch wands, large frame and smooth rotative controls make everyday brewing comfortable and intuitive.
Key Features
-
Dual boiler system
A stainless steel 0.6 litre brew boiler sits alongside a copper and brass 1.8 litre steam boiler, giving you consistent brewing temperatures and strong, stable steaming power. -
E61 brewing group
The classic E61 group provides natural thermal stability and dependable extraction, forming the foundation of the machine’s smooth espresso performance. -
Rotary pump
A quiet rotary pump delivers steady pressure between 8 and 9 bar, and the machine includes separate manometers for the pump, boiler and brewing unit so you can see everything at a glance. -
Independent PID temperature control
Both the coffee and steam boilers have their own PID system, allowing precise temperature adjustment and consistent results shot after shot. -
Brewing pressure profiling
BPPC offers the ability to shape the brewing pressure curve, giving you extra control over how flavours develop during extraction. -
Cool touch wands
Both the steam and water wands stay cool to the touch, making milk steaming and water dispensing safer and more comfortable. -
Large and durable build
Stainless steel housing, chromed brass components, a steel cup grid, polished and satin finishes and a removable stainless steel drip tray all create a strong, premium build. -
Water supply flexibility
Use the built in 1.9 litre tank or connect the machine directly to a mains water supply using the included tubes. -
Complete accessory set
Comes with the Fascino double spouted portafilter, competition filters, blind filter, inox tamper, cleaning brush, scoop and connection tubes.
Technical Specifications
- Boiler Type: Dual boiler
- Steam Boiler Capacity: 1.8 litres
- Coffee Boiler Capacity: 0.6 litres
- Boiler Materials: Steam boiler copper and brass, coffee boiler stainless steel
- Brewing Group: E61
- Brewing Unit Material: Brass (chromed)
- Pump Type: Rotary
- Pump Pressure: 8 to 9 bar

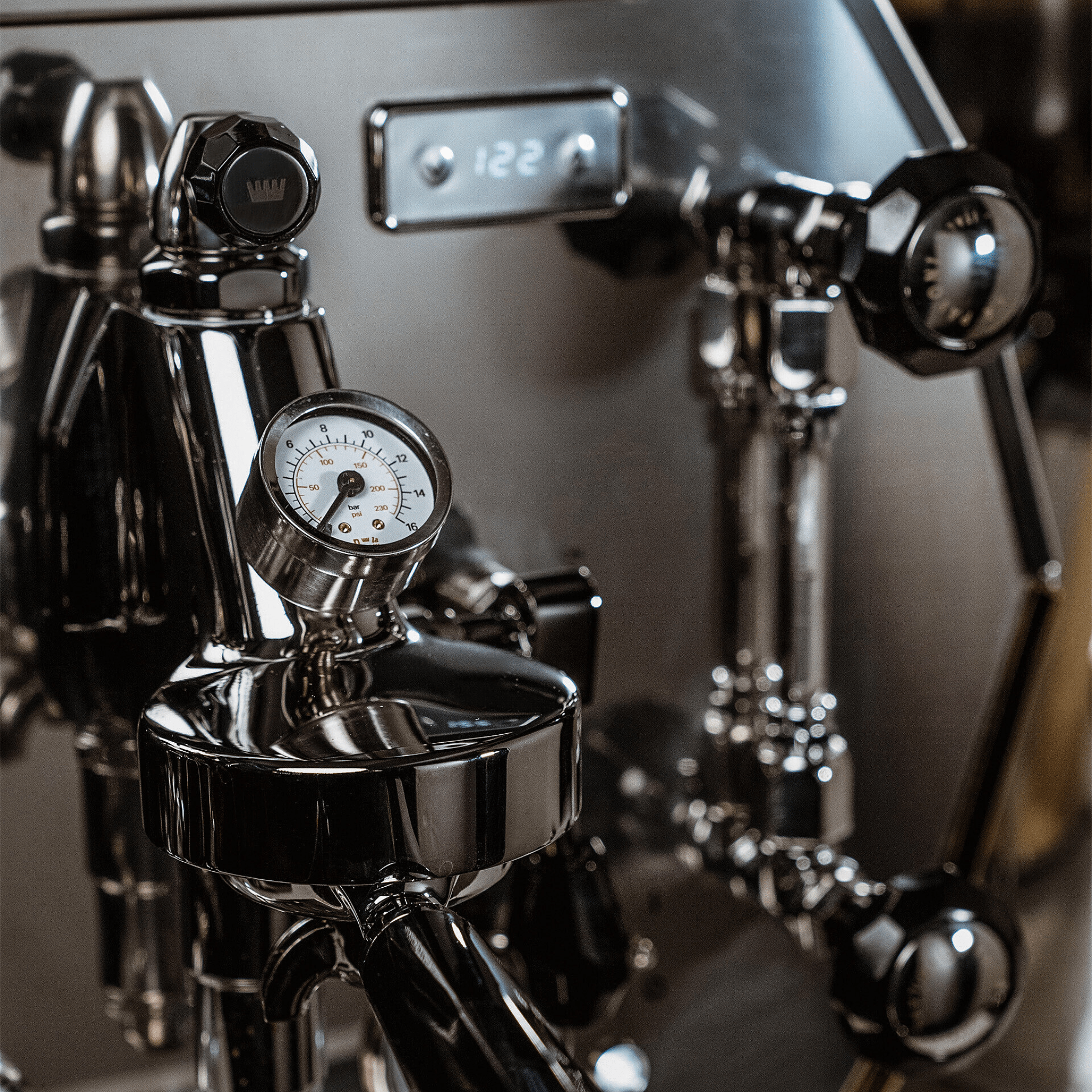

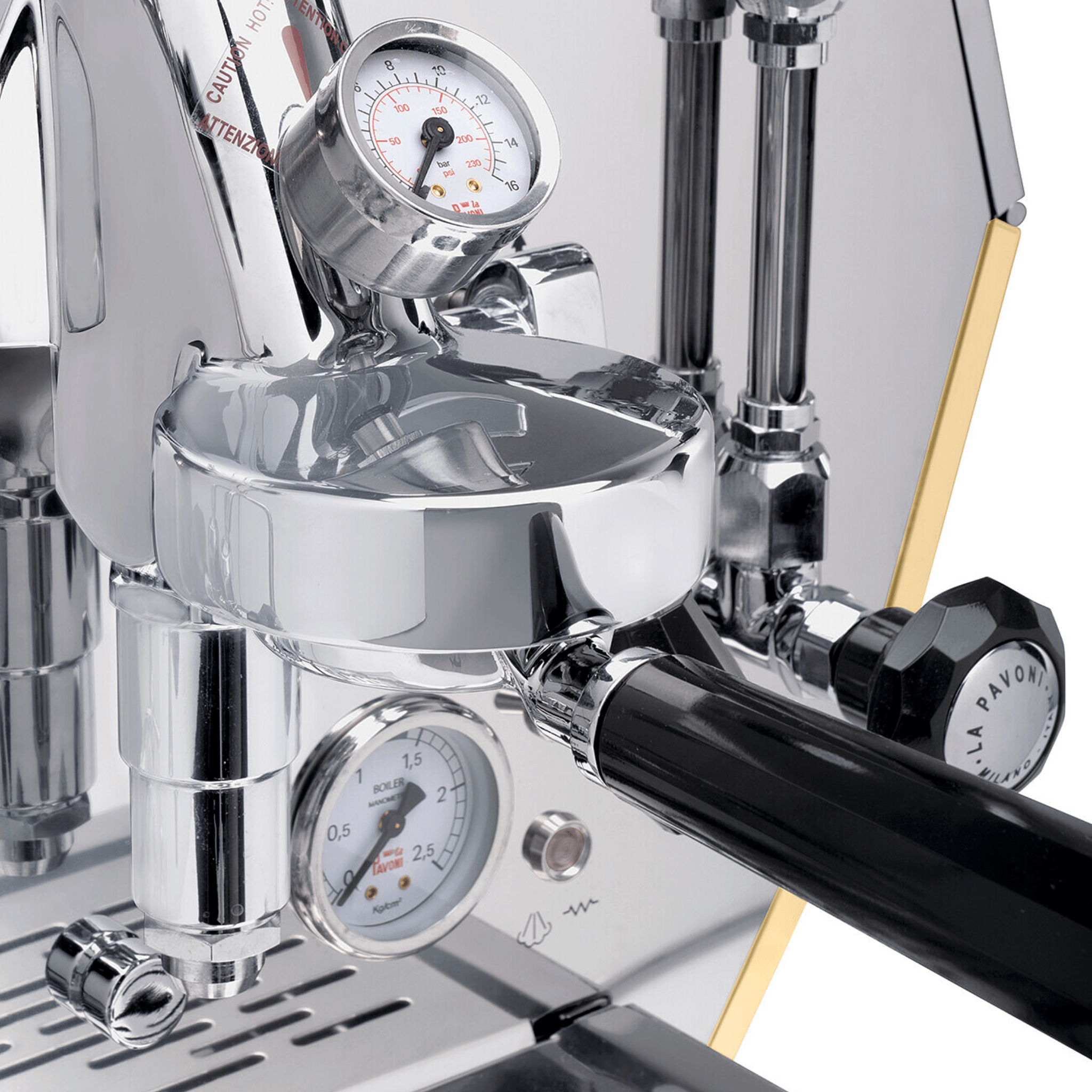

- Manometers: Boiler, pump and brewing unit manometers
- PID Control: Independent PID for coffee and steam temperatures
- Brewing Pressure Profiling: Yes (BPPC)
- Water Tank Capacity: 1.9 litres
- Water Supply Connection: Yes
- Wands: Cool-touch steam wand and cool-touch water wand
- Filter Holder Size: 58 mm
- Drip Tray: Stainless steel, removable
- Cup Warmer: Passive
- Safety: Anti-vacuum valve, electronic automatic water level
- Power: 2380 W
- Voltage: 220–240 V
- Frequency: 50/60 Hz
- Power Cord Length: 1.8 m
- Dimensions (W x D x H): 510 × 500 × 540 mm
- Net Weight: 31 kg
- Gross Weight: 34.93 kg
The complete technical specifications for this model are listed below. If you have any questions regarding your specific setup, please contact us for assistance.
